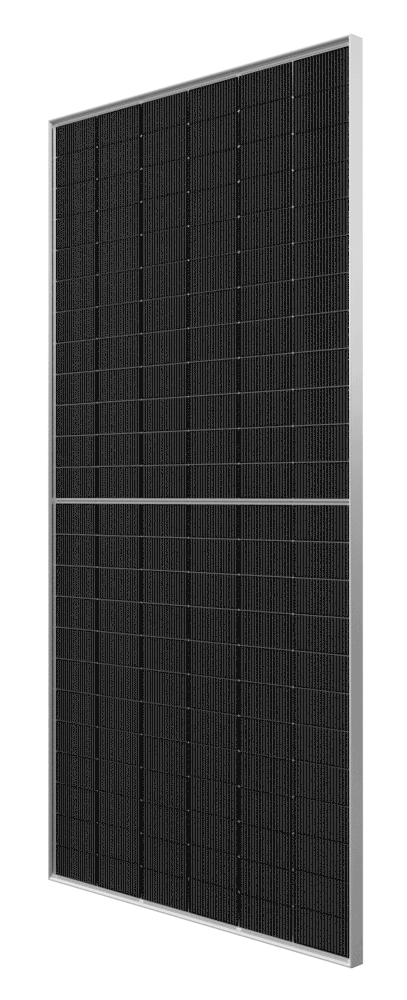

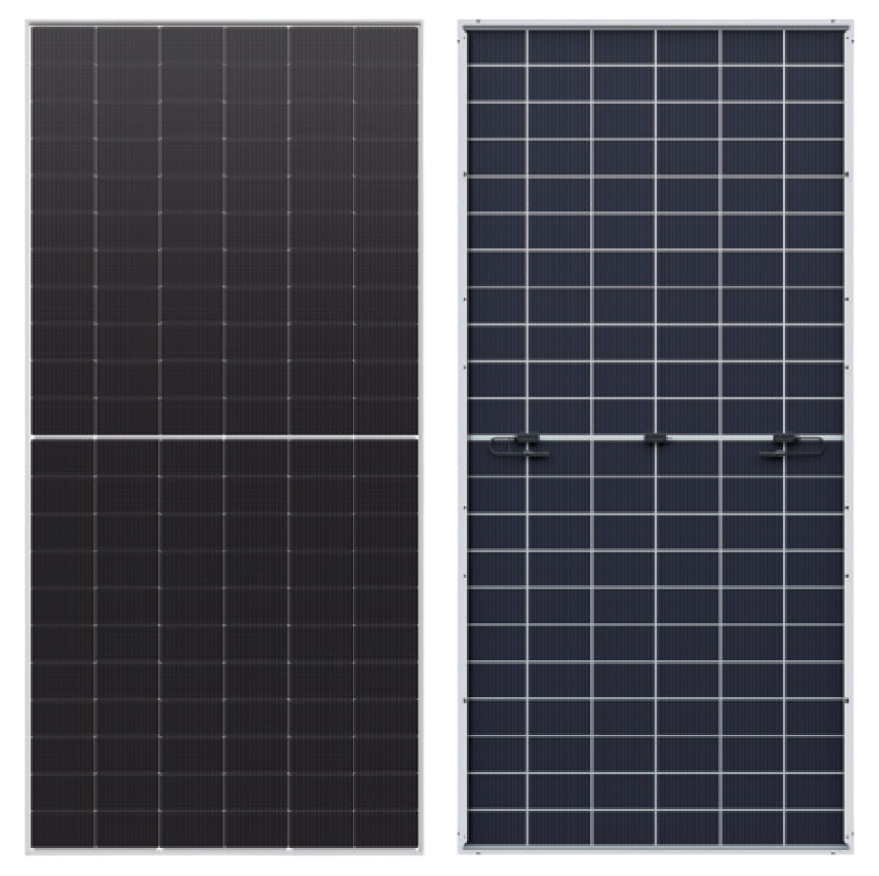

Panel Solar Hi-MO7 LONGi

Especificaciones

Mechanical Parameters

Cell Orientation

132 (6×22)

Junction Box

IP68, three diodes

Output Cable

4mm², +400, -200mm/±1400mm length can be customized

Glass

Dual glass, 2.0+2.0mm heat strengthened glass

Frame

Anodized aluminum alloy frame

Weight

33.5kg

Dimension

2382×1134×30mm

Packaging

36pcs per pallet / 144pcs per 20’ GP / 720pcs or 576pcs (only for USA) per 40’ HC

Electrical Characteristics (LR8-66HGD-620M)

Module Type

LR8-66HGD-620M

Testing Condition

STC / NOCT

Maximum Power (Pmax/W)

620 / 471.9

Open Circuit Voltage (Voc/V)

48.78 / 46.36

Short Circuit Current (Isc/A)

16.05 / 12.89

Voltage at Maximum Power (Vmp/V)

40.91 / 38.88

Current at Maximum Power (Imp/A)

15.16 / 12.14

Module Efficiency(%)

23.0
